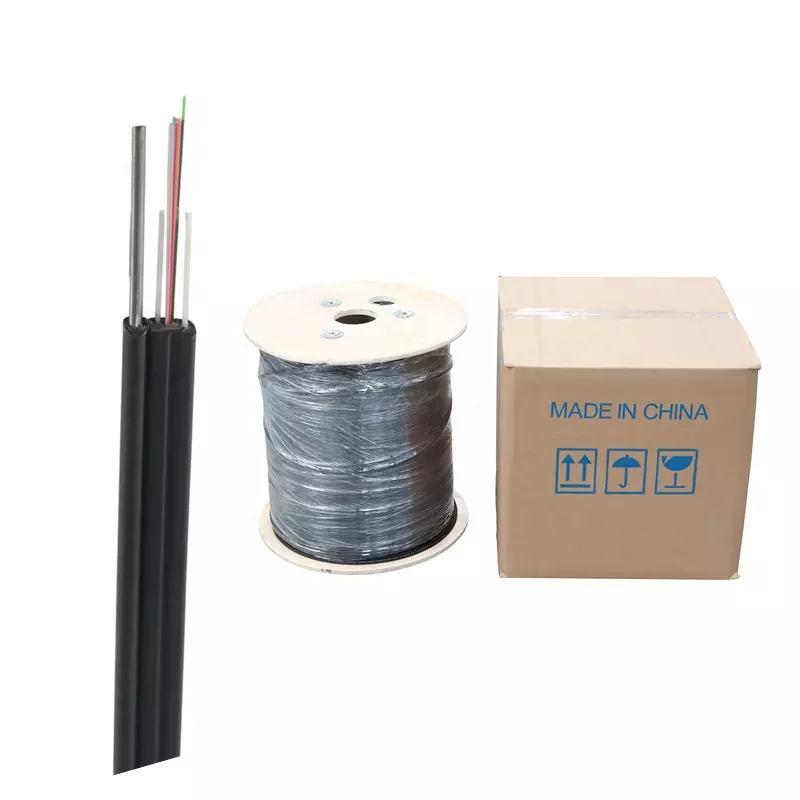

FTTH drop cable GJYXFCH,GJXH GJXFH GJYXCH ,G657A1 G657A2 G652D Indoor Outdoor
Product Details:
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specifications
| Fiber Count | Cable Diameter
(mm) |
Cable Weight
(kg/km) |
Tensile Strength
(N/100mm) |
Crush Resistance
(N/100mm) |
|||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |
