ADSS Fiber Optic Cable G652D Outdoor Types
Product Details:

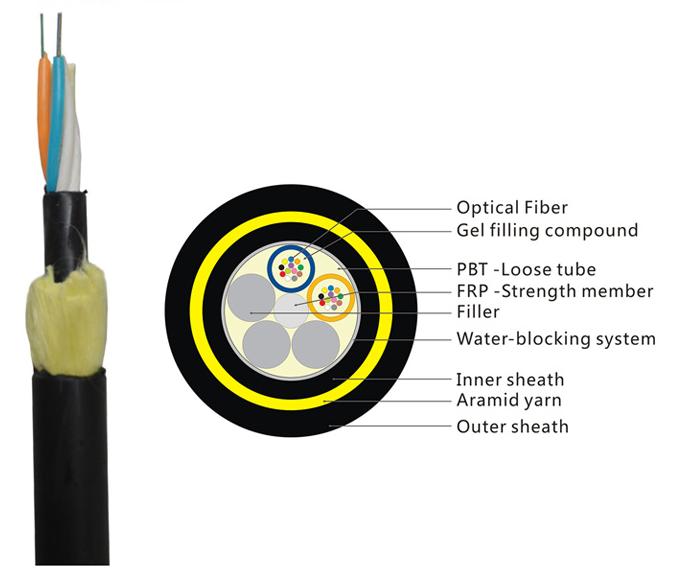

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.
it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
ADSS SINGLE JACKET
ADSS Single jacket suit for span 80-200m
ADSS DOUBLE JACKET
ADSS Double jacket suit for span 200-1500m
|
Applications
|
—Outdoor aerial applications
|
|
—Low voltage transmission system(≤12 kV)
|
|
|
—Railway & Telecommunication pole route
|
|
|
—Subscriber & Local Area Network
|
|
|
—Voice, data, video & imaging system
|
|
NAME
|
FIBER
COUNT
|
CABLE OD
(MM)
|
WEIGHT
(KG/KM)
|
TENSILE STRENGTH
(N)
|
CRUSH N/100MM
|
BENDING S/D
|
|
ADSS CABLE
|
2-30
|
9.5
|
86
|
1000/3000
|
1000/3000
|
10D/20D
|
|
32-72
|
10.5
|
110
|
||||
|
74-96
|
12.2
|
148
|
